Model

Specification

Model selection

■ Suitable for gas filling capacity 17000 Nm3/d

MUBP1200-AMUBP1200-B

Inlet pressure : 0.02〜0.8MPa Outlet pressure : 25MPa Gas filling flow : 720Nm3/h Power Supply : 380V、3 Phase、50Hz Power: 18.5KW

Single pump Double pumps(One use One backup )

■ Suitable for gas filling capacity 21000 Nm³/d

MUBP1500-AMUBP1500-B

Inlet pressure : 0.02〜0.8 MPa Outlet pressure : 25MPa Gas filling  flow : 900 Nm3/h Power Supply : 380V、3 Phase 、50Hz Power : 22KW

Single pump Double pumps(One use One backup )

■ Suitable for gas filling capacity 28000 Nm3/d

MUBP2000-AMUBP2000-B

Inlet pressure : 0.02〜0.8 MPa Outlet pressure : 25MPaGas filling  flow : 1200Nm3/h Power Supply : 380V、3 Phase 、50Hz Power : 30 KW

Single pump Double pumps(One use One backup )

■ Suitable for gas filling capacity 36000 Nm³/d

MUBP2500-AMUBP2500-B

Inlet  pressure : 0.02〜0.8MPa Outlet pressure : 25MPa Gas filling flow : 1500Nm3/h Power Supply : 380V、3 Phase 、50Hz  Power : 37 KW

Single pump Double pumps(One use One backup )

■ Suitable for gas filling capacity 43000 Nm³/d

MUBP3000-AMUBP3000-B

Inlet pressure : 0.02~0.8MPa Outlet pressure : 25MPaGas filling  flow : 1800Nm3/hPower Supply : 380V、3 Phase 、50HzPower : 45 KW

Single pump Double pumps(One use One backup )

■ Suitable for gas filling capacity 72000 Nm³/d

MUBP5000-AMUBP5000-B

Inlet  pressure : 0_02〜0.8MPa Outlet pressure : 25MPa Gas filling flow : 3000 Nm3/h Plower Supply : 380V、3 Phase 、50Hz Power : 75 KW

Single pump Double pumps(One use One backup )

Standard configuration  Optional configuration

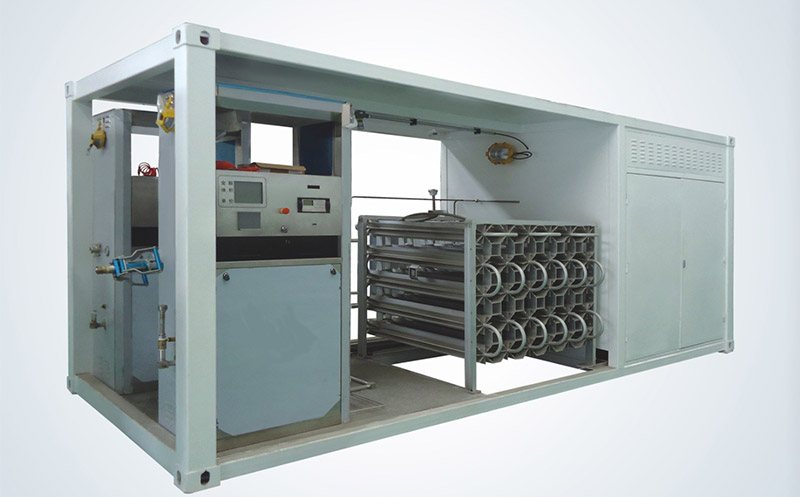

L-CNG High-Pressure Cryogenic liquid pump, EAG release system, High-Pressure vaporization system and PLC automatic control system. High efficient re-heating system(Cold regions) Tanker pressurization system, cryogenic hose, instrument system, computer electrical monitoring system, liquid metering system
