1) TSG R0005《Supervision Regulation on Safety Technology for Transportable Pressure Vessel》
2) NB/T47059-2017《Tank Containers for refrigerated cryogenic liquid》
3) GB/T16563-2017 GB/T16563-2017《Serial 1：Freight Containers-Specification and Testing-Tank Containers for Liquids，Gases and Pressurized Dry Bulk》
4)《Rules Certification of Freight Containers》2016
5)《International Maritime Dangerous Goods Code》（IMDG）2018
6) T/CATSI 05001-2018
7)《International convention for safe containers》（CSC）
8)《customs convention on containers》（CCC）1972
9) CSAB625-13 appendix C

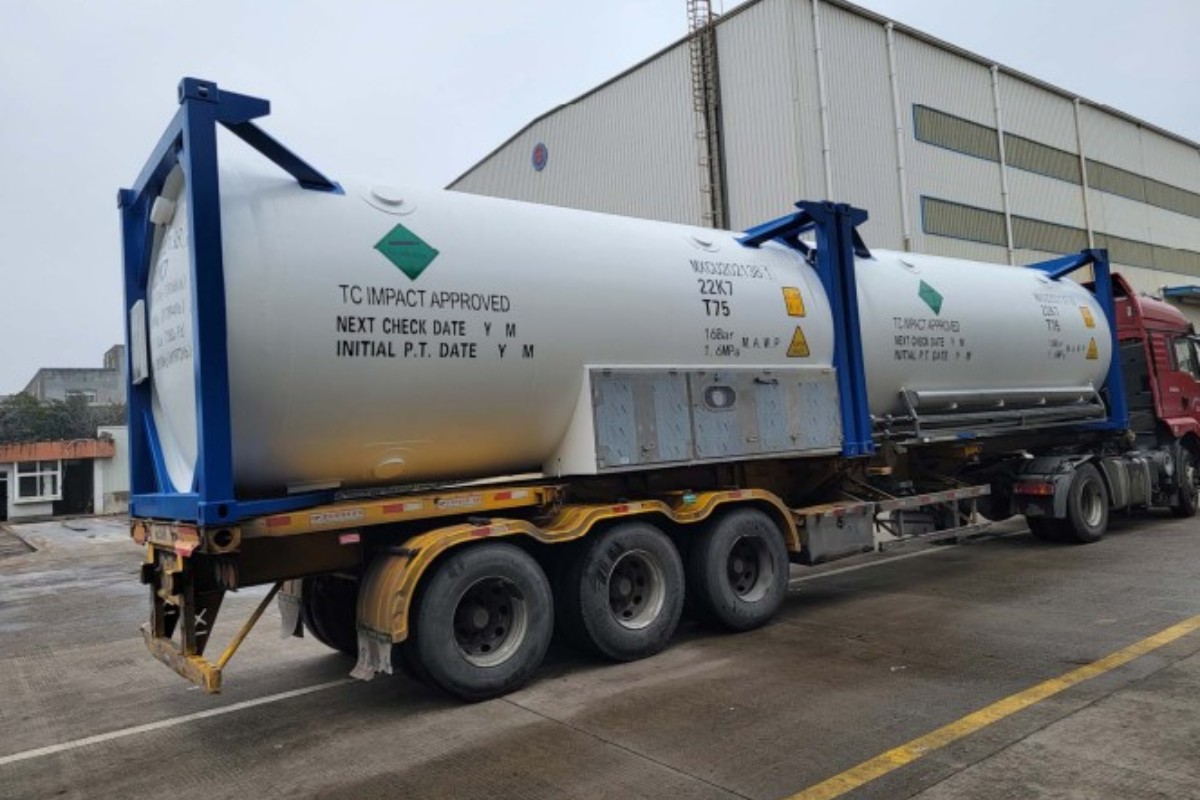

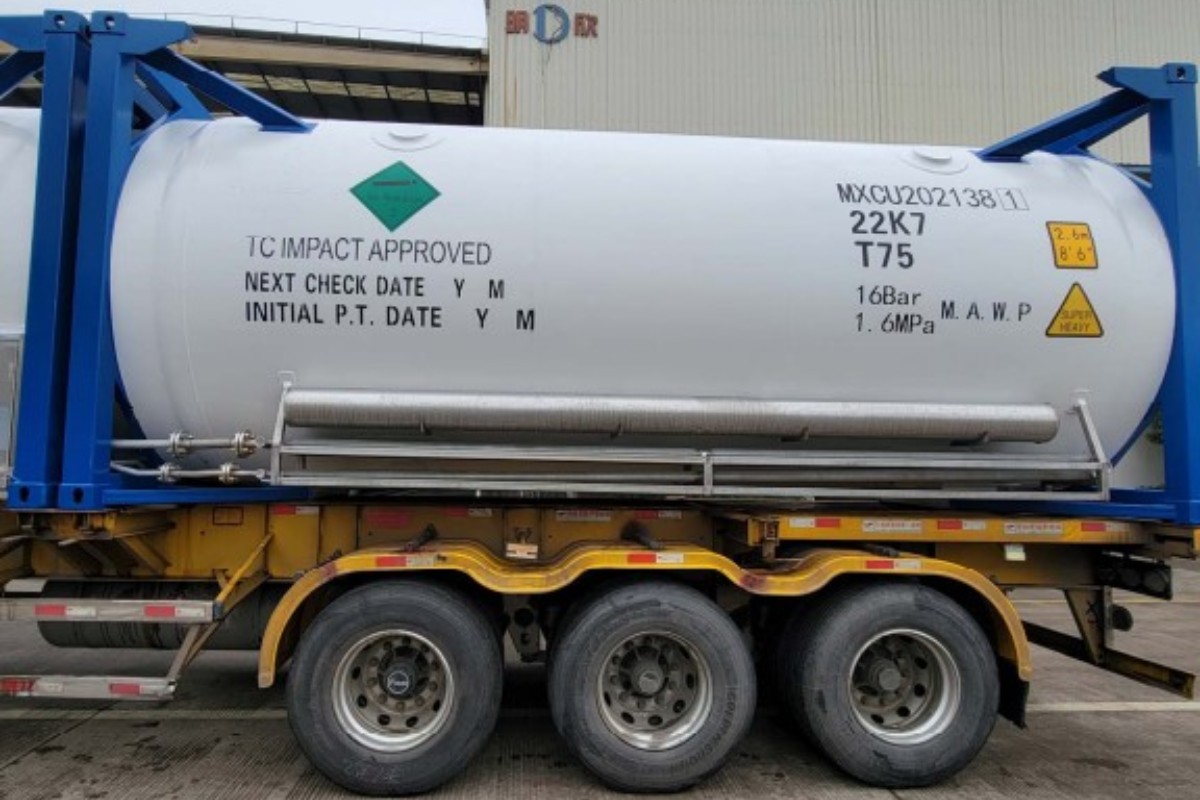

| Model：1CC-TCS-20800/16 Insulation type：Multi layer | |||
|---|---|---|---|
| NO | Items | Inner vessel | Outer vessel |
| 1 | Design pressure MPa | 1.6 | -0.1（outer） |
| 2 | Working pressure MPa | 1.6 | -0.1（outer） |
| 3 | MAWP MPa | 1.6 | / |
| 4 | Design temperature ℃ | -196 | -19～50 |
| 5 | Working temperature ℃ | ≥-196 | normal |
| 6 | Pneumatic test MPa | 1.6 | HLD |
| 7 | G. Vol m3 | 20.8 | 5.5(interlayer) |
| 8 | E. Vol m3 | 19.76 | / |
| 9 | Medium | LOX/LIN/LAR | Multi layer |
| 10 | Main material | S30408 | Q345R |
| 11 | Treatment | Pickling and passivation | Sanding and coating |
| 12 | Corrosion allowance mm | 0 | 0 |
| 13 | Joint efficiency | 1 | 0.85 |
| 14 | Filling rate | 95% | / |
| 15 | Static evaporation %/d | ≤0.22(by LOX), ≤0.35 (by LIN), ≤0.24 (by LAR), | |
| 16 | Seal off vacuum degree Pa | ≤1×10-2 | |
| 17 | Leakage of vacuum interspace Pam3/s | ≤1×10-6 | |
| 18 | ISO code | 22T7 | |
| 19 | Diameter mm | Φ2150 | Φ2400 |
| 20 | External Dimensions mm | 6058×2438×2591 | |
| 21 | type | Horizontal | |
| 22 | Tare weight Kg | ~7890 | |
| 23 | Fully loading weight Kg | ~15986(LIN), ~27585(LAR), ~22546(LOX) | |
| 24 | Design service life | 15years | |
| 25 | Open pressure for safety valve | 1.89Mpa | |
| 26 | Sort | Ⅲ | |
| 27 | Portable tank guideline | T75 | |
| 28 | Valve system | Chinese valves + WIKA level gauge | |
