Model |
NMX5100GDYY |
NMX5180GDYN |
NMX5180GDYY |
NMX5250GDYY |
NMX5250GDYN |
NMX5310GDYN |
NMX5310GDYY |
NMX5311GDYR |
NMX9400GDYN |
NMX9400GDYR |
NMX9400GDYY |
NMX9401GDYN |
NMX9401GDYR |
NMX9401GDYY |
|
Isolation type |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
High-vacuum multi-layer isolated |
|
Storage medium |
LO2 |
LN2 |
LO2 |
LO2 |
LN2 |
LN2 |
LO2 |
LAr |
LN2 |
LAr |
LO2 |
LN2 |
LAr |
LO2 |
|
Design temperature |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
|
Working pressure |
2.4MPa |
1.6MPa |
1.6MPa |
1.6MPa |
1.6MPa |
1.5MPa |
1.45MPa |
1.6MPa |
1.1MPa |
1.3MPa |
1.2MPa |
1.6MPa |
1.6MPa |
1.6MPa |
|
Maximum design load mass |
3420Kg |
7355Kg |
8055Kg |
11290Kg |
10610Kg |
15070Kg |
16070Kg |
15670Kg |
25180Kg |
26735Kg |
26785Kg |
25090Kg |
27500Kg |
27010Kg |
|
Maximun design total mass |
9525Kg |
18000Kg |
18000Kg |
25000Kg |
25000Kg |
31000Kg |
31000Kg |
31000Kg |
40000Kg |
39635Kg |
40000Kg |
40000Kg |
40000Kg |
40000Kg |
|
Geometric volume |
3.26m3 |
11.6m3 |
8.7m3 |
10.9m3 |
14.8m3 |
19.8m3 |
14.9m3 |
13m3 |
34.18m3 |
21.85m3 |
25.42m3 |
33.2m3 |
22.2m3 |
25.5m3 |
|
Engine rated power |
105KW |
140KW |
140KW |
180KW |
180KW |
248KW |
248KW |
248KW |
/ |
/ |
/ |
/ |
/ |
/ |
|
Maximum design drawing quality |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
≥40000Kg |
≥40000Kg |
≥40000Kg |
≥40000Kg |
≥40000Kg |
≥40000Kg |
|
Curb weight |
5910Kg |
10450Kg |
9750Kg |
13580Kg |
14260Kg |
15800Kg |
14800Kg |
15200Kg |
14820Kg |
12900Kg |
13215Kg |
14910Kg |
12500Kg |
12990Kg |
|
Vehicle type |

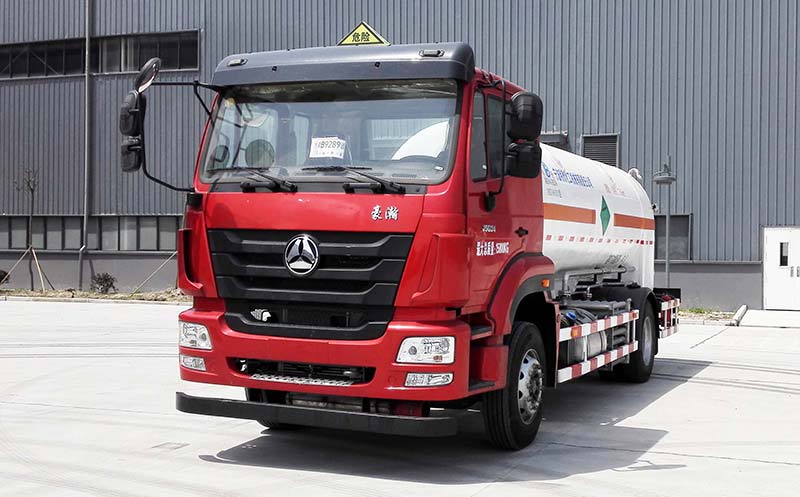

Truck |
Truck |
Truck |
Truck |
Truck |
Truck |
Truck |
Truck |

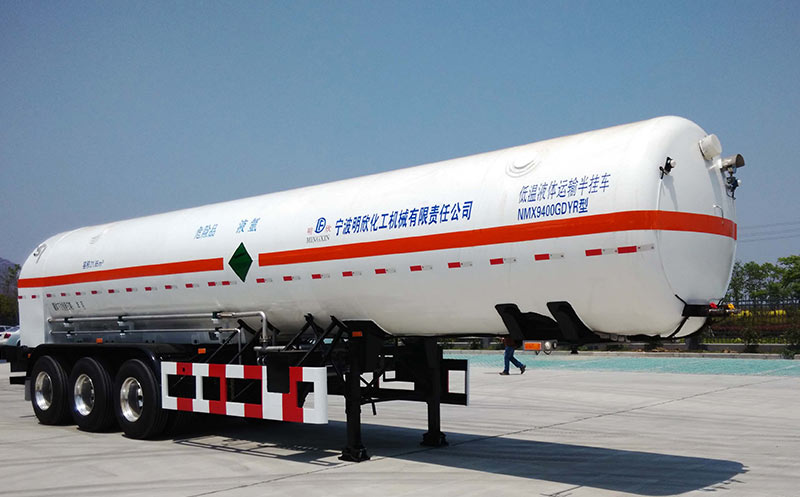

Triaxial Trailer |
Triaxial Trailer |
Triaxial Trailer |
Triaxial Trailer |
Triaxial Trailer |
Triaxial Trailer |
|
Dimensions（L×W×H） |
6830×2110×2450mm |
8860×2500×3210mm |
8555×2500×3100mm |
9770×2500×3370mm |
9700×2500×3370mm |
11200×2500×3570mm |
11400×2500×3570mm |
11500×2500×3570mm |
12000×2500×3700mm |
11935×2500×3300mm |
11650×2500×3540mm |
11810×2500×3650mm |
11750×2500×3320mm |
11680×2500×3450mm |
|
Brand of chassis |
DongFeng |
DongFeng |
DongFeng |
DongFeng |
DongFeng |
CNHTC |
CNHTC |
CNHTC |
/ |
/ |
/ |
/ |
/ |
/ |
