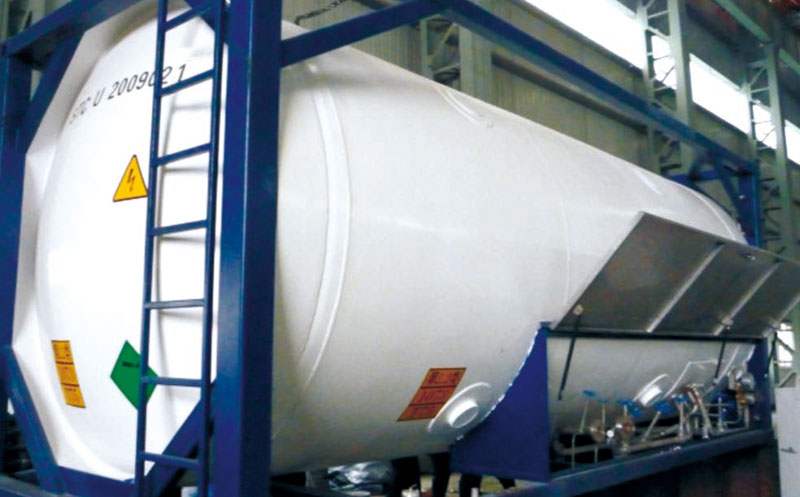

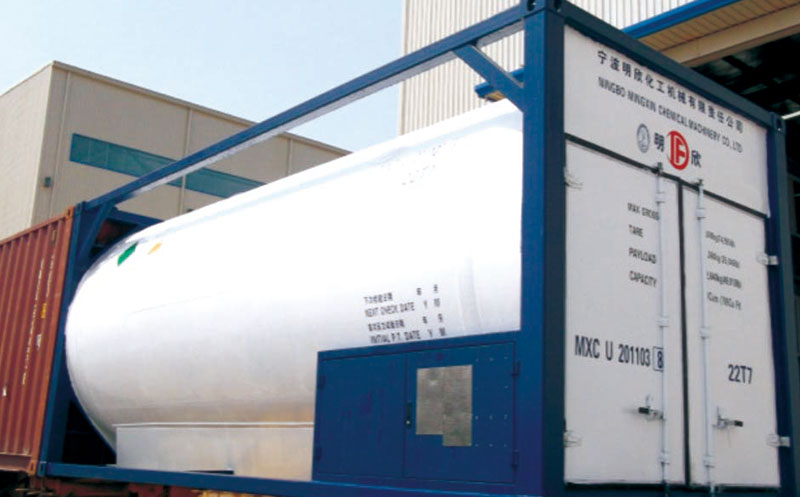

CRYO-TECH prvides the following ISO cryogenic tank: 20ft, 40ft
1. CRYO-TECH prvides the following ISO cryogenic tank: 20ft, 40ft
2. Used for: Different kinds of liquid/gas.
3.Cryogenic ISO Tank Container capacity: 20m3~43m3.
4. Cryogenic ISO Tank Container pressure:0.8MPa,1.6MPa or 2.4MPa depending on different medium.
5. CRYO-TECH product certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA
Main technical specification for ISO tank container |
|||||||
Model |
1CC-TC-18400/8 Cryogenic ISO tank container |
1CC-TC-18440/17 Cryogenic ISO tank container |
1CC-TCF19/2.4 Cryogenic ISO tank container |
1CC-TCC20/2.4 LCO2 ISO tank container |
1CC-TCS-18300/8 LNG ISO tank container |
1AA-TLNG40/7 LNG ISO tank container |
1CC-TCW-24/2.28 LPG ISO tank container |
Size |
20' |
20' |
20' |
20' |
20' |
40' |
20' |
Loading Medium |
LIN/LAr/LOX |
LIN/LAr/LOX |
LIN/LAr/LOX/LCO2 |
LCO2 |
LNG |
LNG |
LPG |
Design Pressure (MPa) |
0.88 |
1.68 |
2.40 |
2.40 |
0.80 |
0.77 |
2.265 |
Geometry voloum (M3) |
20 |
20 |
19 |
20 |
19.2 |
40 |
24 |
Main Material (Inner/Outer) |
S30408/Q345R |
S30408/Q345R |
S30408/Q345R |
16MnDR/Q345R |
S30408/09MnNiDR |
S30408/Q345R |
SA612M |
Isolation |
High vacuum,multi-layer isolated |
High vacuum,multi-layer isolated |
High vacuum,multi-layer isolated |
High vacuum,multi-layer isolated |
High vacuum,multi-layer isolated |
High vacuum,multi-layer isolated |
/ |
Outer Diameter (MM) |
6058×2438×2591 |
6058×2438×2591 |
6058×2438×2591 |
6058×2438×2591 |
6058×2438×2591 |
12192×2438×2591 |
6058×2438×2591 |
Diameter of vessel (MM) |
Φ2412×5950 |
Φ2412×5950 |
Φ2422×5690 |
Φ2410×5926 |
Φ2416×5820 |
Φ2416×11590 |
Φ2440×5940 |
Weight of equipment (KG) |
9360 |
11360 |
13000 |
12300 |
8135 |
15713 |
10100 |
